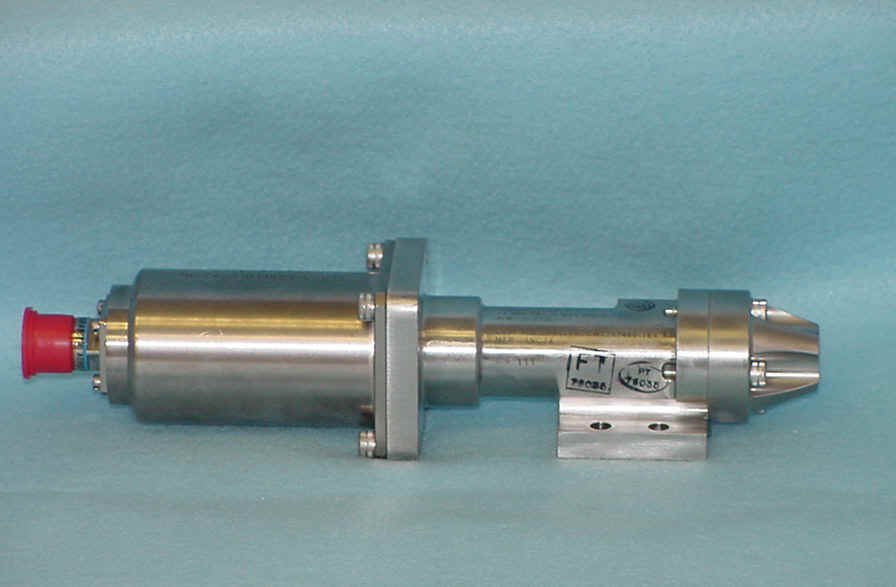

10,000 psig Helium Three-Way
Valve
|
|
Features
 |
10,000 psig working pressure |
|
Leakage rate on Helium is less than 1 X 10-4
SCCS |
|
Operates with 24 ± 4 VDC |
|
|
Application
This device is used to shutoff the helium
supply to the pneumatic control system of a rocket in the event
a hold is required. This valve will hold the 10,000 psig
of helium with less leakage than one bubble in 30
days. |
|
Click Here
to view the brochure on this valve in a printable PDF format.
Need Adobe Acrobat Reader?

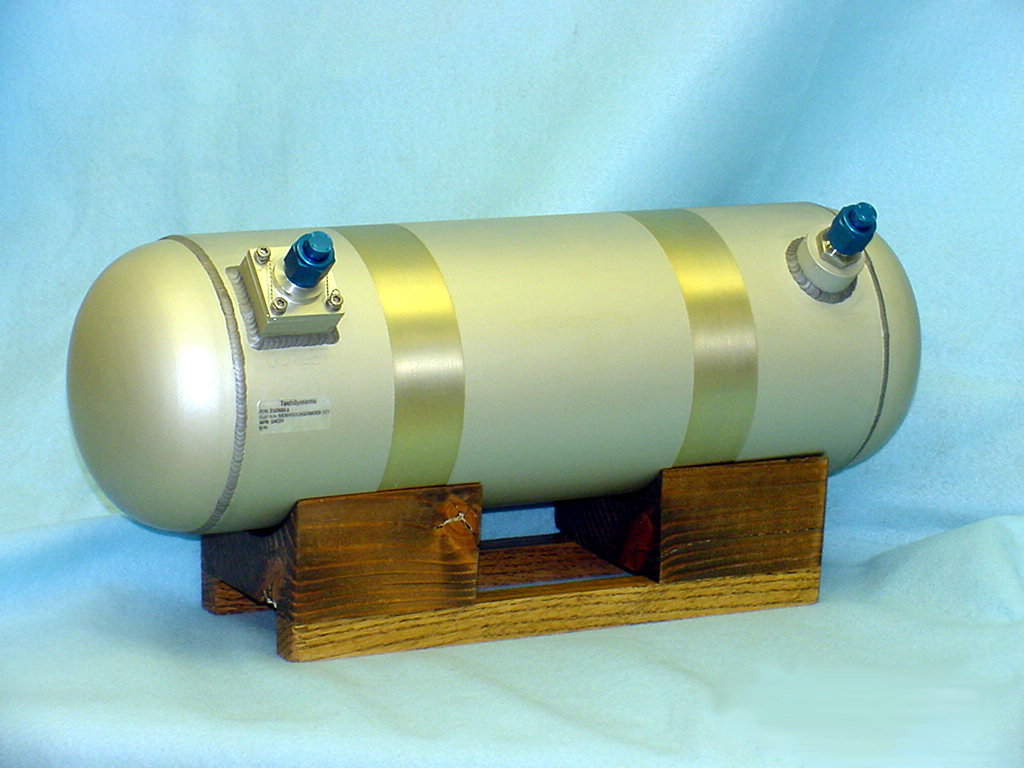

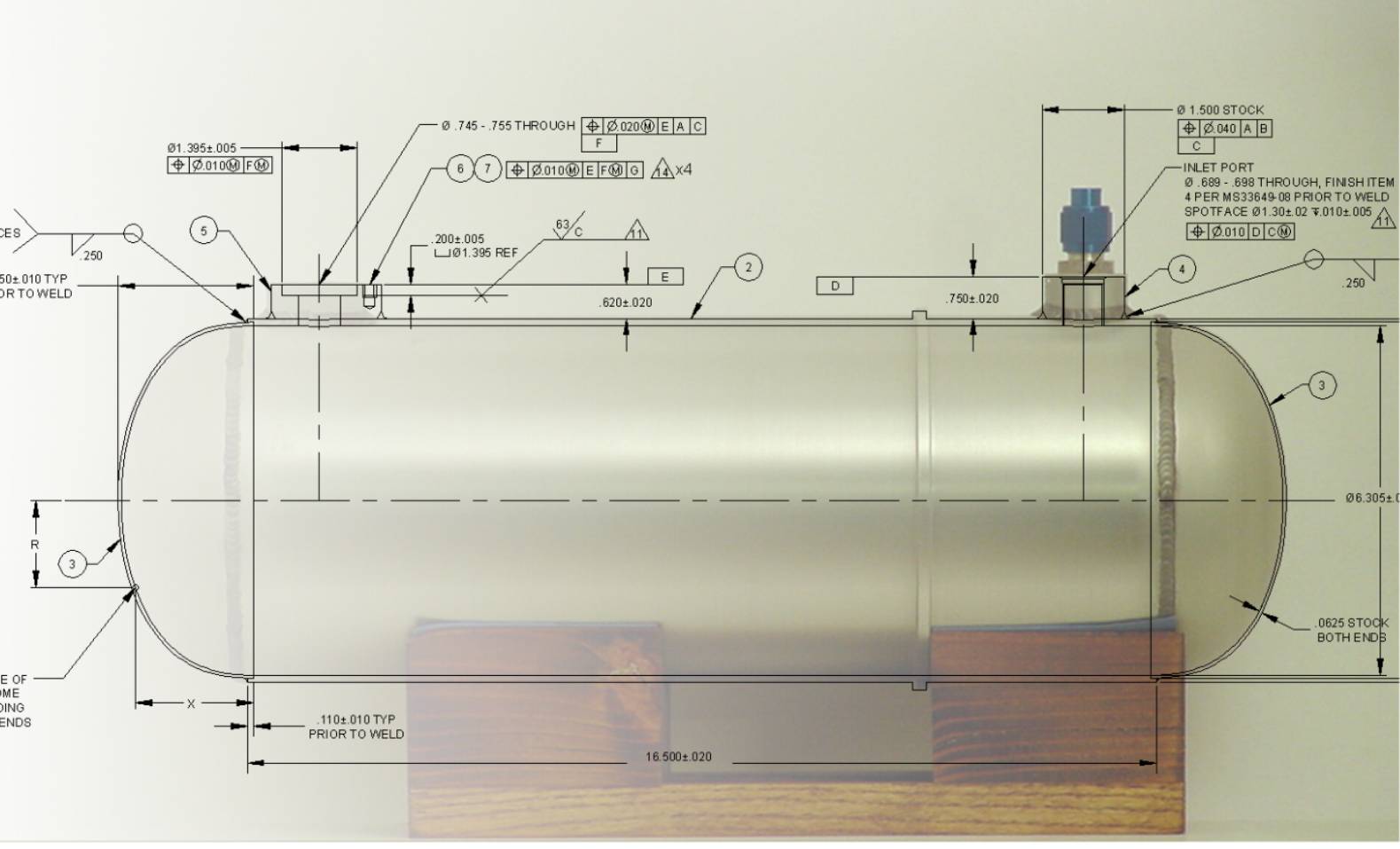

Hydraulic Capture Tank
|
|
Features
|
Capacity of 600 in3 |
|
Weight is less than 6.5 lbs empty |
|
Emergency Rupture Disk design to vent excess fluid |
|
|
Application
This device is used to collect hydraulic fluid
from a payload delivery rocket. During normal operation, the
tank does not vent fluid, however, the rupture disk allows for
excess fluid to be dumped overboard. |
|
|
|
|
