Flow Test


Pneumatic

bulletMedia:
bulletAir
bulletNitrogen
bulletHelium
bulletArgon
bullet Specialty Gases



bulletCapability: to 20 lbs/min

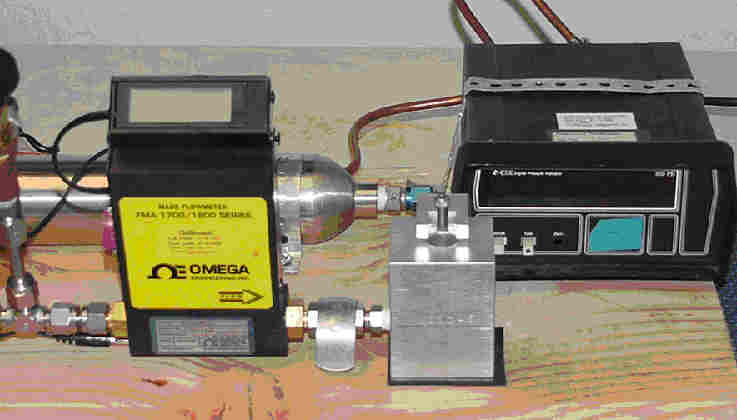

Typical Pressure and Flow Test Setup

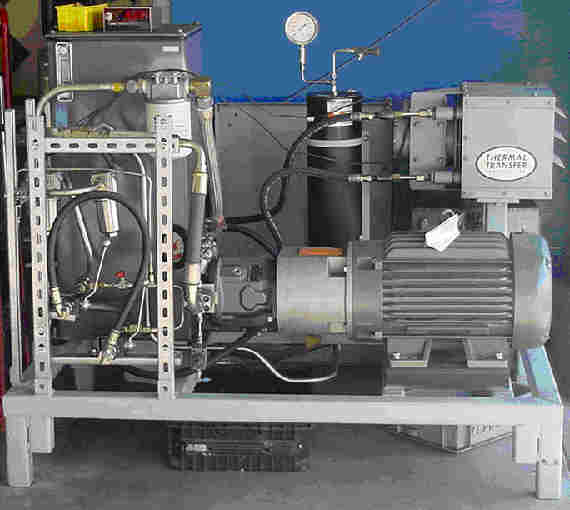

Hydraulic Flow Pump



Hydraulic

bulletMedia:
bulletMIL-PRF-83282
bulletMil-PRF-7024 Type II,       2190 TEP/
bulletMil-I-173331
bulletMIL-PRF-5606



bulletCapability: to 20 gpm at 3000 psig (Mil-PRF-83282)



Custom Flow Testing Example

Test check valve at a pressure of 20" H2O flowing 11 lb/min of air.

Click Here for more information on this specific test.
